Network and Data Cable

Extrusion Process

Assembly Process

Recommended: Cantilever Type Single Stranding/twisting Machine

Recommended: Horizontal/vertical Type Back-twist+pair Twisting Machine

Outer Sheath Extrusion Process

Recommended: Jacket Sheath Extrusion Line

Extrusion Process

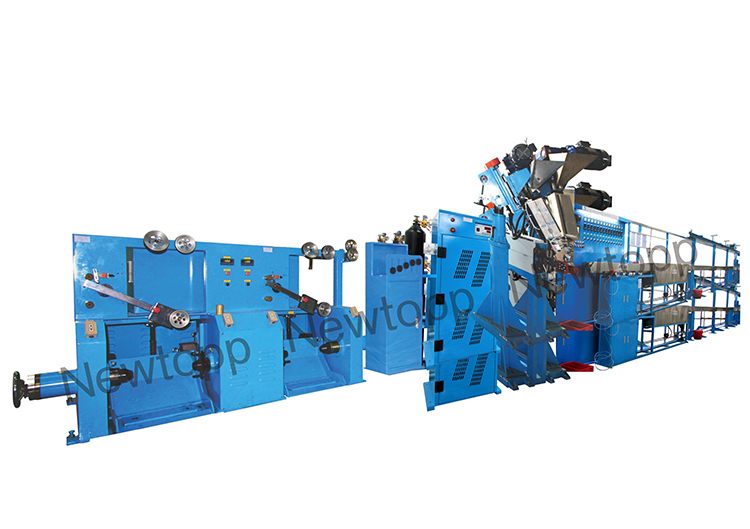

Recommend:  Physical Foaming Wire & Cable Extrusion Line

Applications:

Suitable for physical foaming double-layer/three-layer insulation extrusion of copper wire conductors, single-layer+injection strip extrusion. Used for high-demand foam cables such as communication cables, data cables, coaxial cables, RF cables, RG, JIS, DVI, HDMI, etc.

Features:

1. High output: Optimizing screw design, Screw durability, non-cohesive gel, non-take off a chrome, color change quickly, high wire speed, high output.
2. High quality: Extrusion concentricity: over 93%; OD tolerance:+/-0.005mm, capacitance value:+/-0.5PF.
3. Temperature control precision: adopted SCR power control machine with imported high-quality temperature control table, the machine temperature is controlled within +/-1℃.
4. Easy control: Intelligent control, capacitance and wire diameter auto-feedback and adjustment, hommization machine design combined with NEwTOPP specialized touch screen. make machine operation easier and more convenient.

Twisting Process

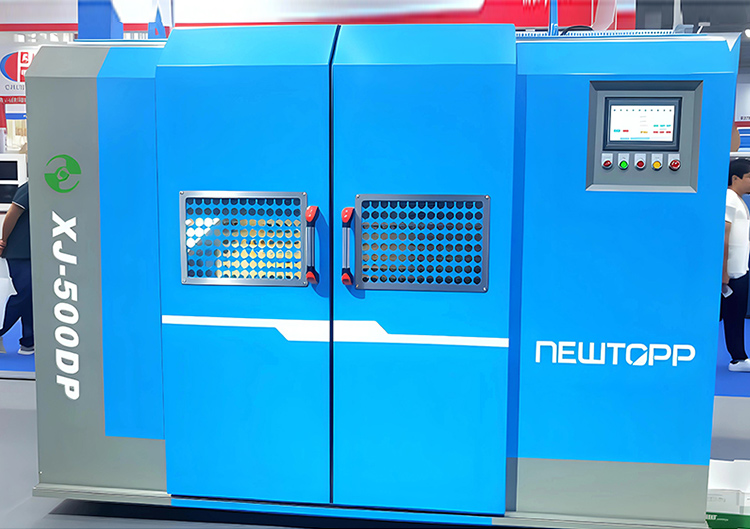

Recommend: Horizontal/vertical Type Back-twist+pair Twisting Machine

Applications:

Suitable for back-twist pay-off and bare-twist pair twisting of insulation core-wires of data cables such as Cat-5, Cat-5e, Cat-6, and HDMI 2.1, etc.

Features:

1. High output: High rotation speed, the production efficiency is 2 times that traditional type.
2. Tension stability: Wrapping and take-up tension remain constant from start to end.
3. Pitch accurately: Set pitch on the touch screen, PLC control. Pitch is steady while it's normal or accelerates and decelerates.
4. Traversing: Adopted axis-row type, traversing space and distance can be set freely.
5. This is the latest Cantilever standing machine with a capstan: better pitch, better quality.

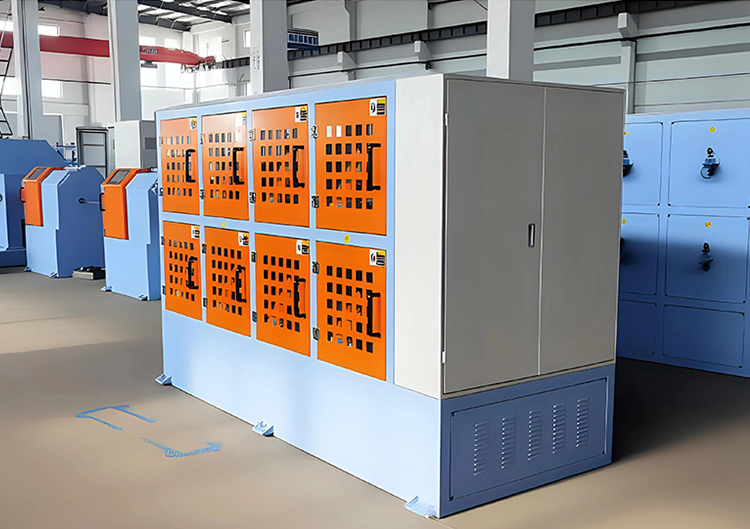

Cantilever single twisting machine

Recommendation:

Applications:

1. Used widely: Used for high-frequency wire, data wire, computer wire, and power wire multi-group twisting.
2. High output: High rotation speed,  the production efficiency is 2 times that traditional type.
3. Tension is steady: Wrapping and take-up tension remain constant from start to end.
4. Pitch accurately: Set pitch on the touch screen, PLC control. Pitch is steady while it's normal or accelerates and decelerates.
5. Traversing: Adopted axis-row type, traversing space and distance can be set freely.
This is the latest Cantilever standing machine with capstan: better pitch, better quality.

Outer Sheath Extrusion Process:

Recommendation:

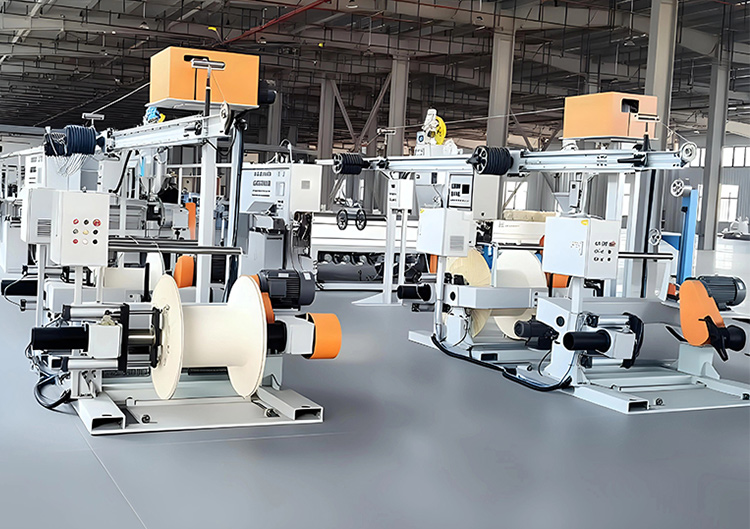

outer sheath extruder

Applications:

Suitable for extruding the outer sheath of industrial cables, data cables, communication cables, high-frequency cables, etc.

Features:

1. High output: Optimizing screw design, Screw durability, non-cohesive gel, not to take off a chrome, color change quickly, high wire speed, high output.
2. High quality: Extrusion concentricity: over 90%, OD tolerance:+/-0.03.
3. Temperature control precision: adopted SCR power control machine with imported high-quality temperature control table, the machine temperature is controlled within +/-1℃.
4. Easy control: Intelligent control, wire diameter auto-feedback and adjustment, hommization machine design combined with NEWTOPP specialized touch screen, make the machine
operation more easier and convenient.
