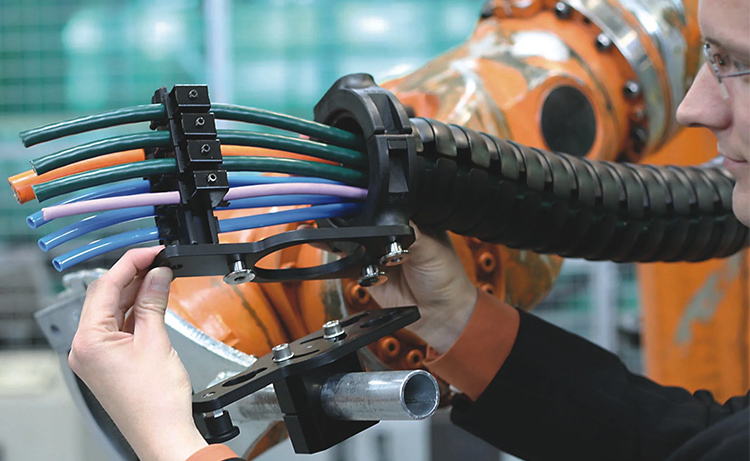

Industrial Cable Application Scenarios: In the industrial sector, robot joint cables need to withstand millions of bends, employing ultra-fine silver-plated copper wire and high-elasticity sheath technology; demand for special products.
Industrial Cable Application Scenarios: In the industrial sector, robot joint cables need to withstand millions of bends, employing ultra-fine silver-plated copper wire and high-elasticity sheath technology; demand for special products.
Industrial Production Line Process
|
Extrusion Process Recommended: 60mm + 25mm core wire extruder |
Assembly Process 1. Single Twisting Recommended: 1000mm cantilever single twisting 2. Cabling Recommended: 400mm-500mm cage stranding machine |
Outer Sheath Extrusion Process Recommended: 70mm outer sheath extruder |
|

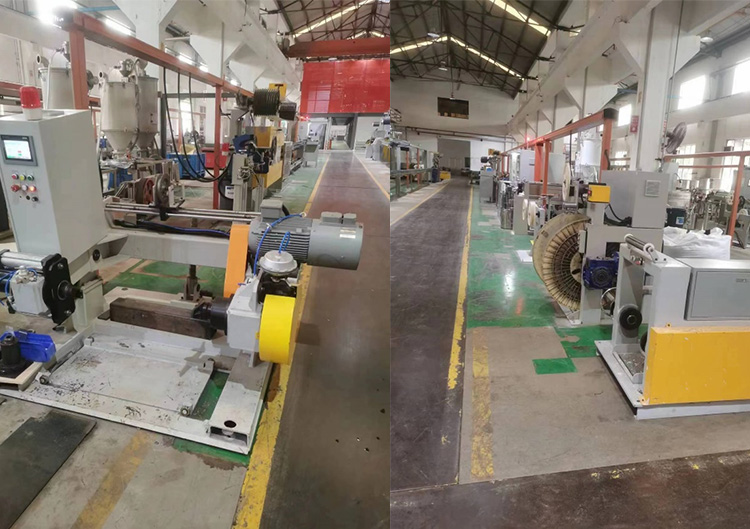

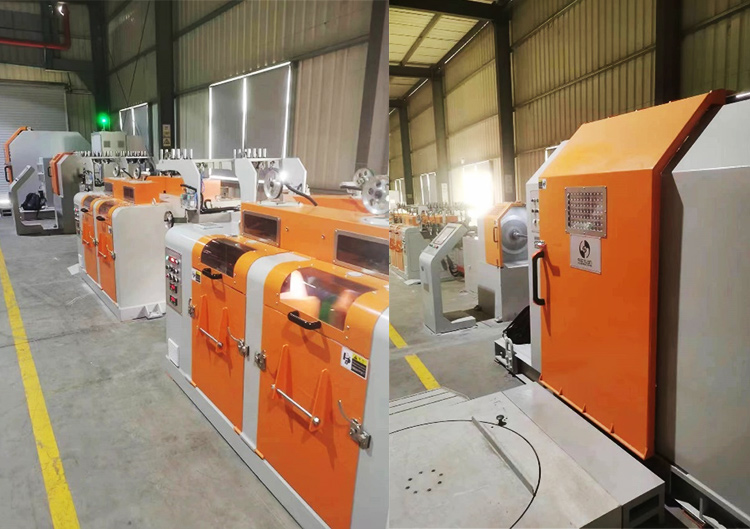

Industrial Line - Extrusion Process Applications: Suitable for high-speed extrusion of single-layer conductor insulation + strip insulation. Features: 1. Wide range of applications |
![]() |
![]() |
1000mm Cantilever Stranding Process Applications: Suitable for multi-strand stranding of industrial cables (drag chain lines, robot cables, etc.), data cables, and power cables. Features: 1. Wide range of applications |
|

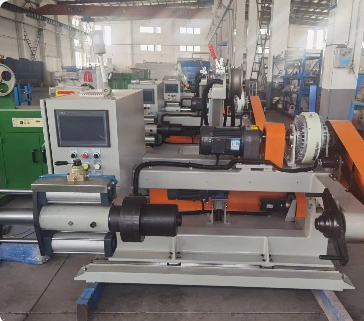

Cantilever winch unwinding and pay-off frame Key technologies: ✔ High efficiency, unwinding speed 500 rpm. |
![]() |
![]() |

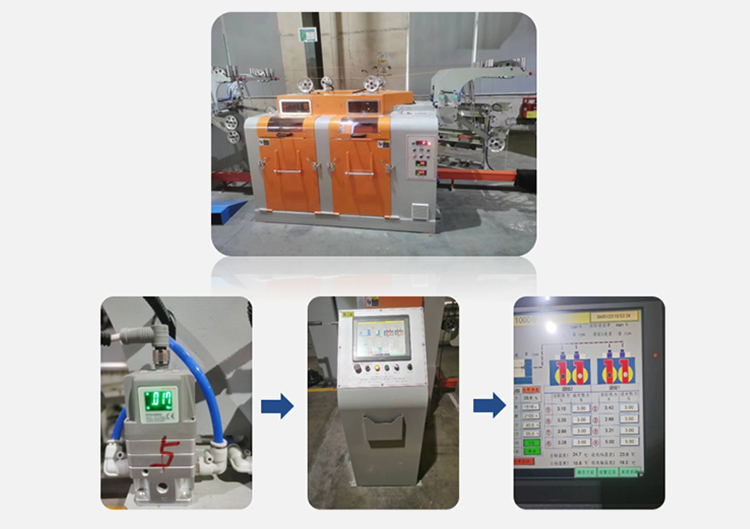

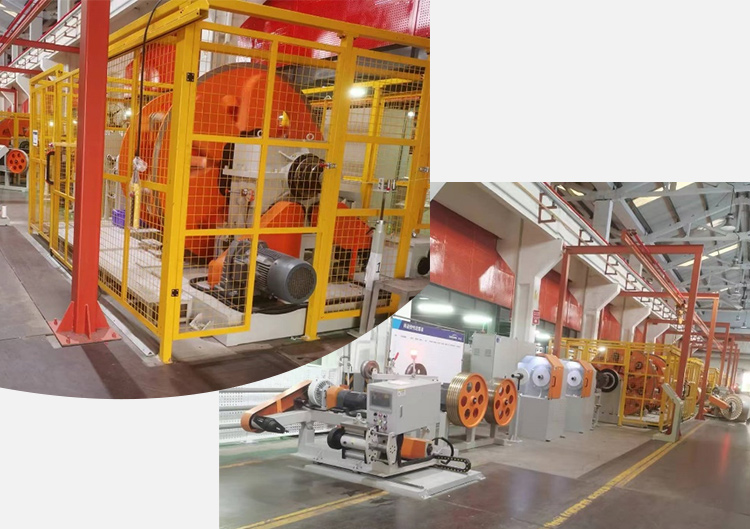

400mm-500mm Cage Winding Machine (Combined Process) Applications: Suitable for processing high-requirement, special standard industrial cables into bundles. Features: 1. Active wire feeding, real-time tension module monitoring, and closed-loop feedback control. |
|

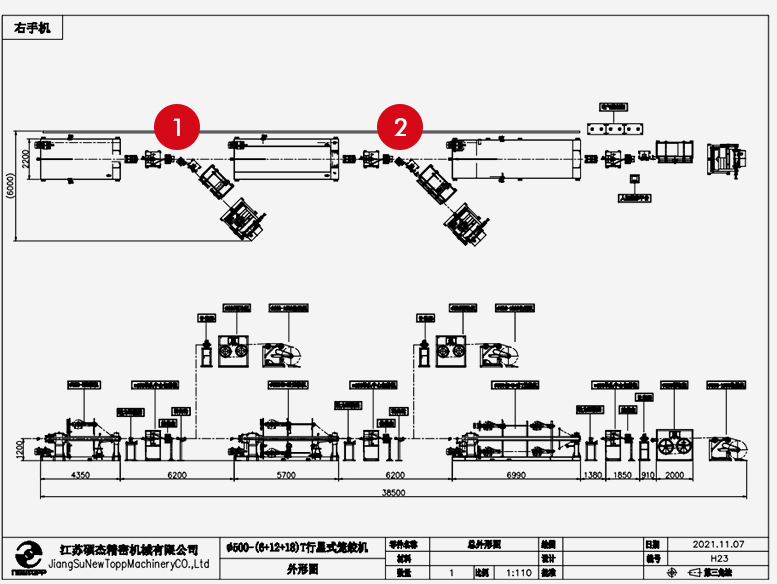

Cage Windlass - Design Drawings Features: Mode 1: 1+6+12+18, 36 heads integrated operation Mode 2: 6 heads, 12 heads, 18 heads, three independent cage windlasses can operate. |
![]() |
Cage Winding Machine Steps:
|

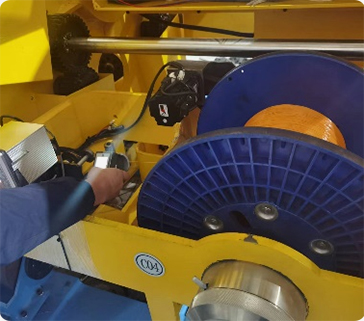

Unwinding Use a 2kW servo motor to drive the wire reel for active unwinding. An intelligent tension module |
![]() |
|
|
Wire collection A spool-type power take-up system is used, equipped with a separate PLC and industrial control panel. |
![]() |
|
|

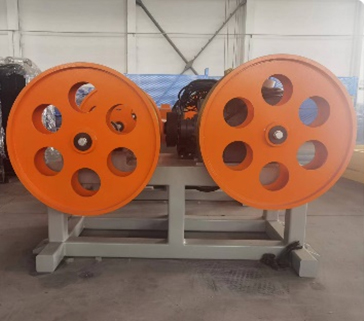

Take-up Dual-wheel take-up is used, with direct digital settings via a touchscreen. The strand pitch is unlimited. |
![]() |
|
|

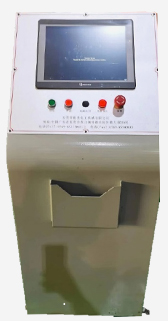

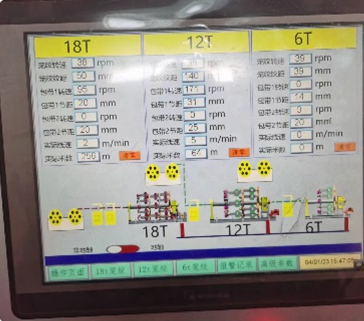

Operation Panel |
![]() ![]() |
|
|
Outer Sheath Extrusion Process: Recommended: Applications: Suitable for extruding the outer sheath of industrial cables, data cables, |
![]() |
