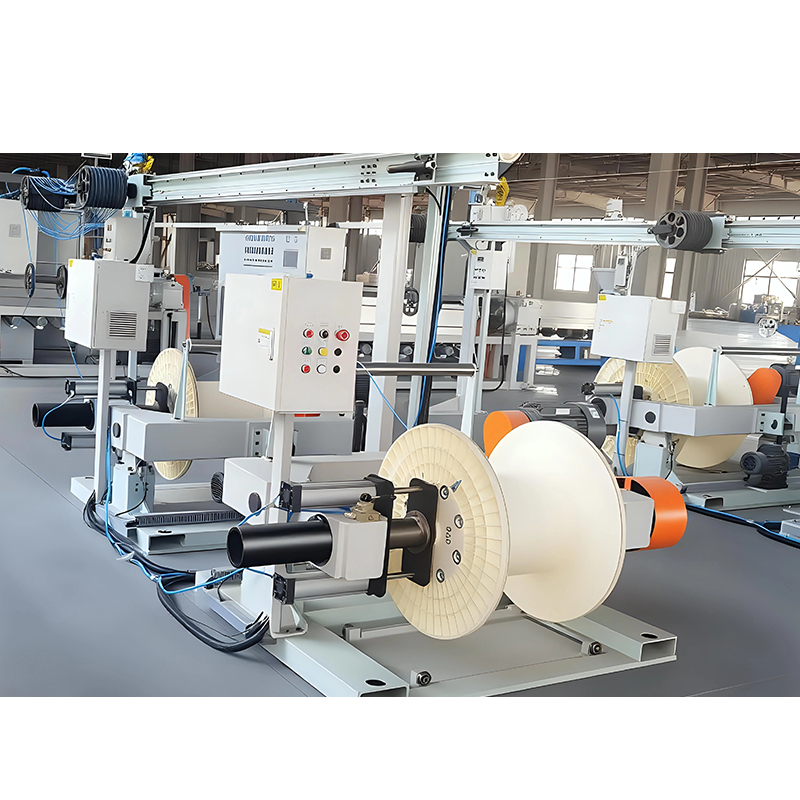

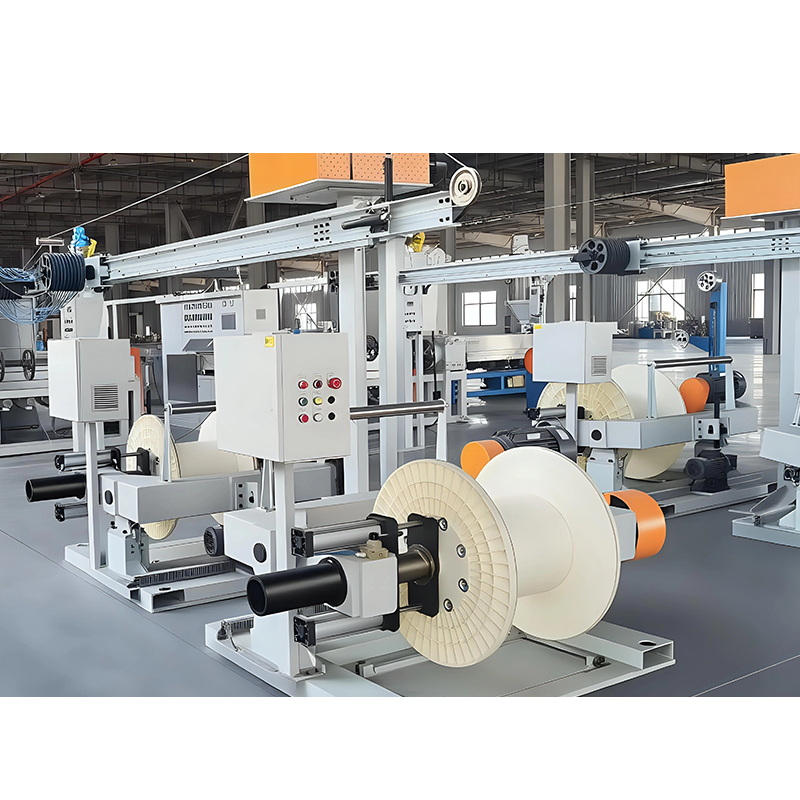

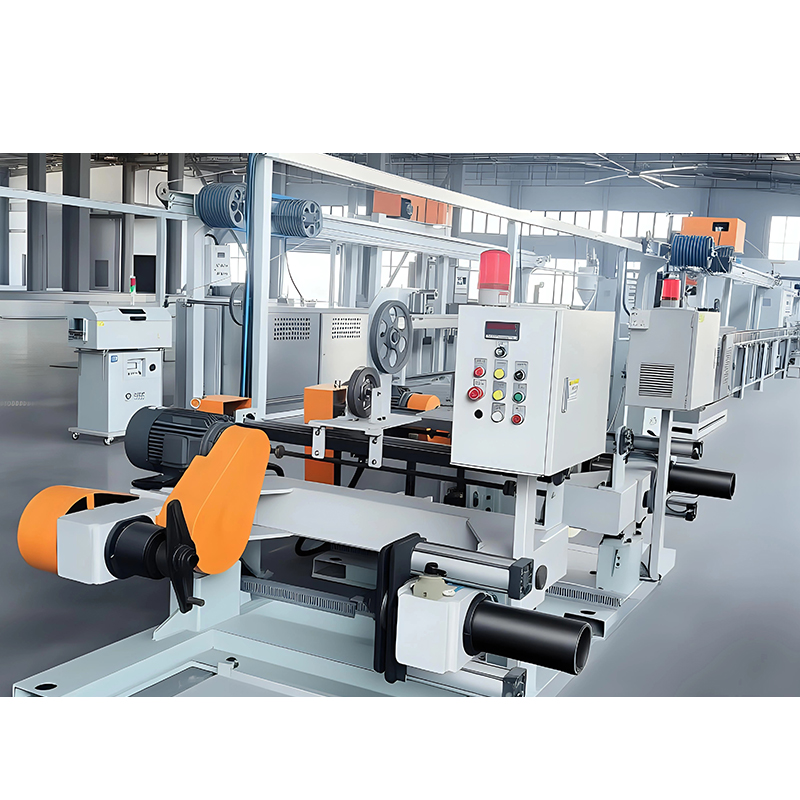

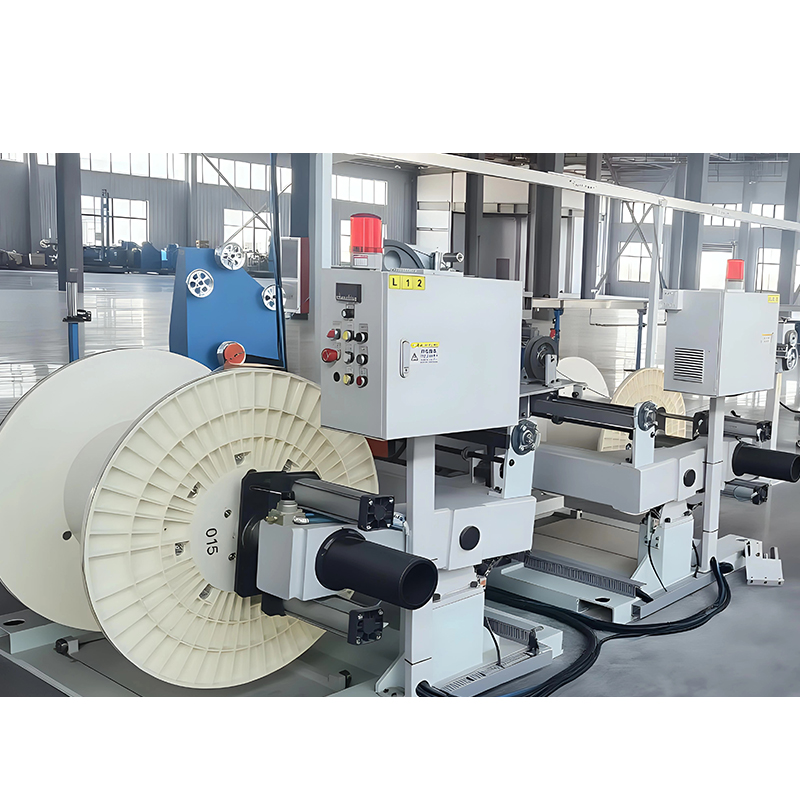

Jacket Sheath Extrusion Line

■ Used widely: Used for power wire, computer wire, data wire, and high-frequency wire outside coating insulation extrusion.

■ High output: Optimizing screw design, Screw durability, non-cohesive gel, not to take off a chrome, color change quickly, high wire speed, high output.

■ High quality: Extrusion concentricity: over 90%, OD tolerance:+/-0.03.
■ Temperature control precision: adopted SCR power control machine with imported high-quality temperature control table, the machine temperature is controlled within +/-1℃.

■ Easy control: Intelligent control, wire diameter auto-feedback and adjustment, hommization machine design combined with NEWTOPP specialized touch screen. make machine operation easier and more convenient.

NewTopp in 15th Shanghai International Wire and Cable Exhibition 2025 03-03
NewTopp is not listed as an exhibitor in search results for the 15th Shanghai International Wire and Cable Exhibition (wire China 2024) or the precedi...
What is the Core Process of a Teflon Wire Extruder? 2025 03-03
The core process for a Teflon wire extruder involves paste/powder extrusion, which consists of mixing the Teflon resin with a lubricant and preforming...
Troubleshooting and Solutions for the Wire Extruder Machine. 2025 03-03
Cable extrusion is a critical process in the manufacturing industry. It's the backbone of producing high-quality cables used in various applications. ...
What are the latest innovations in cable extrusion machines? 2025 03-03
Here are notable recent innovations in cable extrusion machine technology, reflecting current industry advancements:1. Energy & Resource Efficienc...
What is precision cable extrusion equipment? 2025 03-03
Precision cable extrusion equipment is engineered for ultra-accurate coating of conductors, where even minor defects compromise performance. Here's ho...

Model	XJ070	XJ080	XJ090	XJ120	XJ150
Machine Usage	Used for power wire, computer wire,data wire and high frequency wire outside jacket insulation extrusion.
Wire specification	Φ1.5-12mm	Φ2.0-20mm	Φ3.0-25mm	Φ10-40mm	Φ12-50mm
Extrusion material	PVC、SR-PVC、LHNF、PE、PP、PU
Screw parameters	L/D ratio:26:1, Compression ratio:2.7~3.2, Screw material:38CrMoAlA, vacuum heating treatment, Surface grinding, polishing, chromium plating
Temperature-control segments(body+Head)	5+3	5+3	6+3	6+3	6+3
Main Power	40HP	50HP	60HP	100HP	200HP
Highest output	140KG/H	180KG/H	240KG/H	360KG/H	480KG/H
Highest wire speed	400M/MIN	300M/MIN	250M/MIN	180M/MIN	100M/MIN
Movable water tank	Extension type movable trough/Constant temperature movable water tank, Mobile quantity 500, overall length 3M with double-segment type water dryer.
Length of U water tank	7.5M	10M	10M	15M	15M
Accumulate wheel parameters (12+13 grooves)	Φ250	Φ300	Φ400	Φ500	Φ500
Capstan power	5HP	7.5HP	7.5HP	15HP	15HP
Pay-off type	Double-shaft Harp type passive pay-offs/double-shaftless magnetic powder brake passive pay-offs/shaftless active pay-offs, apply to Φ500-1250 bobbin, double column type passive pay-offs apply to Φ1250-2000 bobbin.
Take-up type	Φ400-630 Double-shafts	Φ400-630 Double-shafts	Single-head Φ630-1000mm	Single-head Φ1250-2000mm	Single-head Φ1250-2000mm
