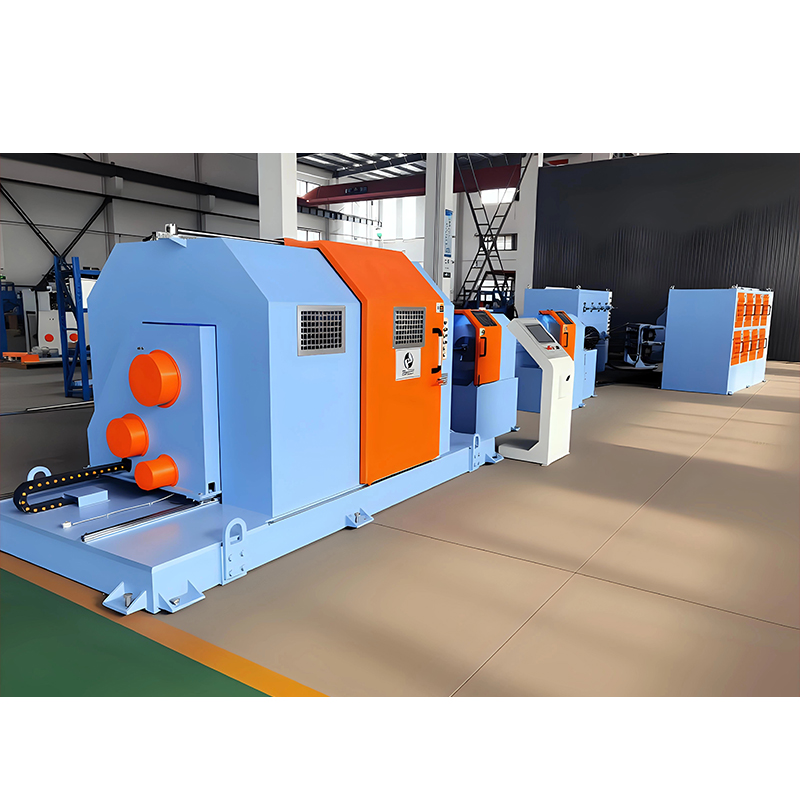

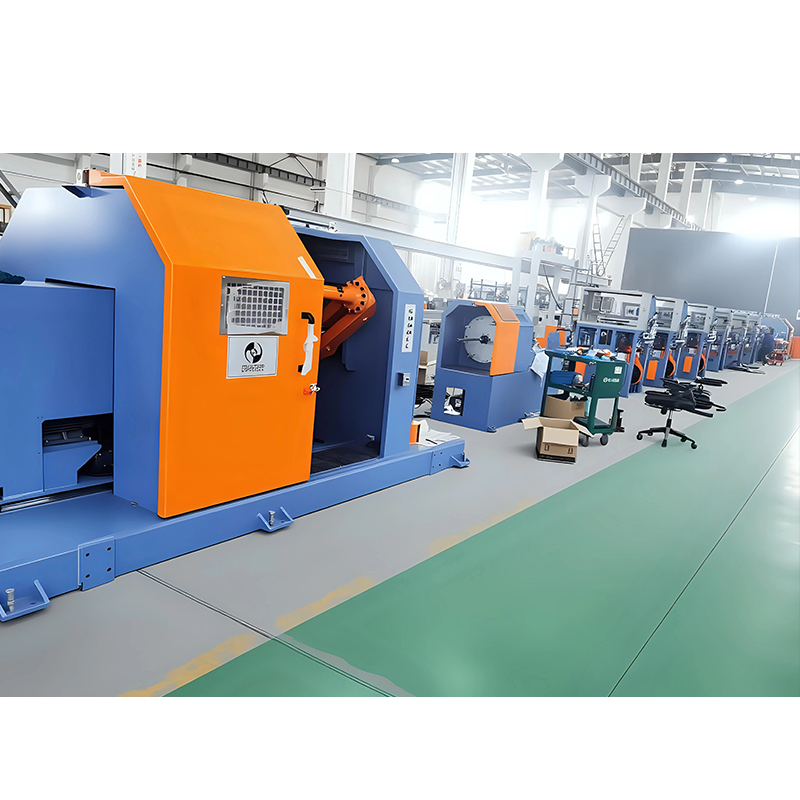

Cantilever Type Single Stranding/twisting Machine

■ Used widely: Used for high-frequency wire, data wire, computer wire, and power wire multi-group twisting.

■ High output: High rotation speed, the production efficiency is 2 times that traditional type.

■ Tension stability: Wrapping and take-up tension remain constant from start to end.

■ Pitch accurately: Set pitch on the touch screen, PLC control. Pitch is steady while it's normal or accelerates and decelerates.

■ Traversing: Adopted axis-row type, traversing space and distance can be set freely.

■ This is the latest Cantilever standing machine with a capstan: better pitch, better quality.

NewTopp in 15th Shanghai International Wire and Cable Exhibition 2025 03-03
NewTopp is not listed as an exhibitor in search results for the 15th Shanghai International Wire and Cable Exhibition (wire China 2024) or the precedi...
What is the Core Process of a Teflon Wire Extruder? 2025 03-03
The core process for a Teflon wire extruder involves paste/powder extrusion, which consists of mixing the Teflon resin with a lubricant and preforming...
Troubleshooting and Solutions for the Wire Extruder Machine. 2025 03-03
Cable extrusion is a critical process in the manufacturing industry. It's the backbone of producing high-quality cables used in various applications. ...
What are the latest innovations in cable extrusion machines? 2025 03-03
Here are notable recent innovations in cable extrusion machine technology, reflecting current industry advancements:1. Energy & Resource Efficienc...
What is precision cable extrusion equipment? 2025 03-03
Precision cable extrusion equipment is engineered for ultra-accurate coating of conductors, where even minor defects compromise performance. Here's ho...

Model	XJ-630	XJ-800	XJ-1000	XJ-1250
Machine Usage	Used for high-frequency wire, data wire, computer wire, and power wire multi-group twisting.
Wire specification	Φ0.6-3.0mm	Φ0.6-5.0mm	Φ1.0-8.0mm	Φ3.0-10mm
Twisted OD	Φ12mm	Φ18mm	Φ25mm	Φ30mm
Pitch range	Set pitch on touch screen: 20-250mm.PLC control, pitch is steady when it accelerates and decelerates.
Rotate speed	MAX900rpm	MAX800rpm	MAX600rpm	MAX400rpm
Power	15HPmotor+differential mechanism	20HPmotor+differential mechanism	25HPmotor+differential mechanism	40HPmotor+differential mechanism
Wrapping type	Single-head horizontal type high-speed centering tapping device+double-head longitudinal tapping device.
Wrapping tension	Adopt a Magnetic clutch+PLC automatic calculation. wrapping tension keeps constant from start to end, need any adjustment.
Take-up type	Axis-row type, No damage during the traversing process, traversing space and distance can be set freely according to the wire specification.
