Automotive New Energy Cable (Copper-aluminum Sheet)

Extrusion Process

Assembly Process

Recommended: 500mm-630mm cage winding machine

Outer Sheath Extrusion Process

Recommended: 100mm/120mm outer sheath extruder

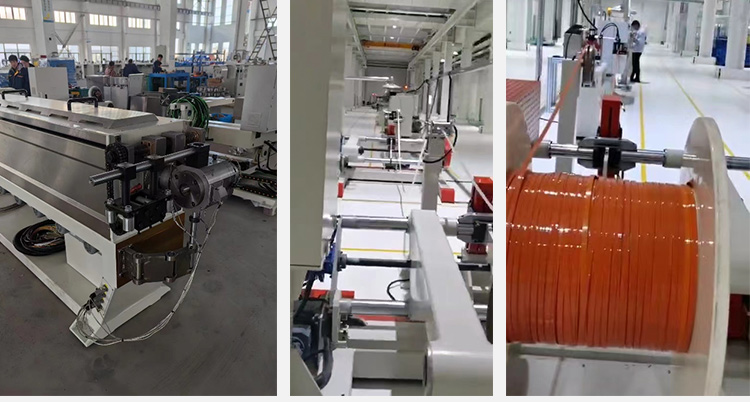

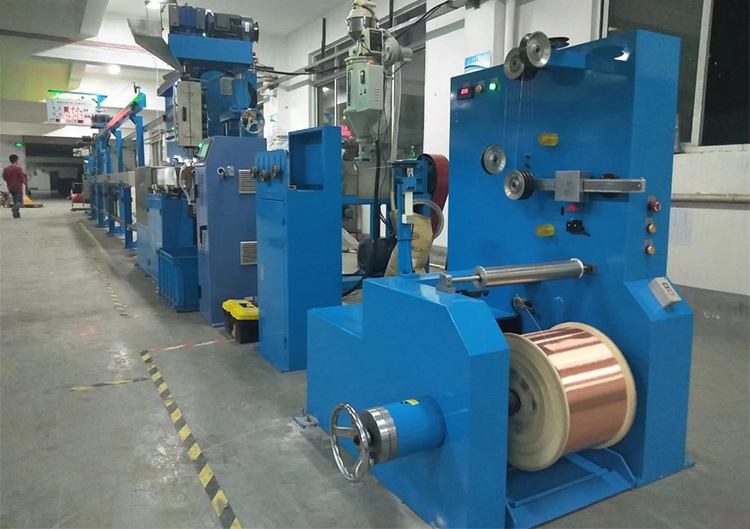

Extrusion Process

Recommend:  60mm+35mm core wire extruder

Applications:

Suitable for single-layer conductor insulation extrusion + high-speed strip insulation extrusion.

Features:

1. Wide range of applications.
2. High production capacity.
3. High quality.
4. Stable temperature control.
5. Easy operation.
6. Small footprint.

Extrusion Process

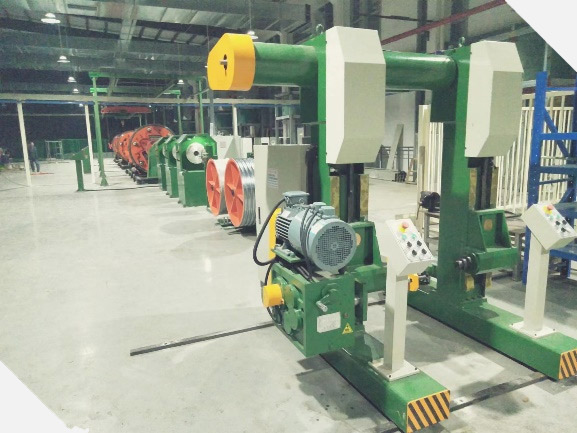

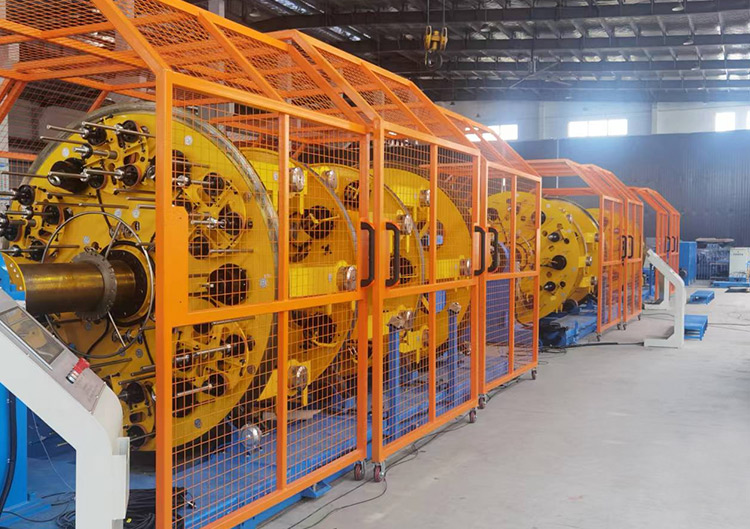

Recommend: 500mm-630mm cage stranding machine

Applications:

Suitable for high-requirement, special standard new energy cable conductor stranding and core wire bundling processing.

Features:

1. Magnetic hysteresis release for precise tension adjustment.
2. Electronic pitch, infinitely adjustable, precise pitch.
3. The power eye mold synchronizes with the host machine operation, reducing friction.
4. Shaft-type winding ensures stable wire performance.
5. Intelligent control with alarm shutdown.
6. Easy installation, no foundation required.

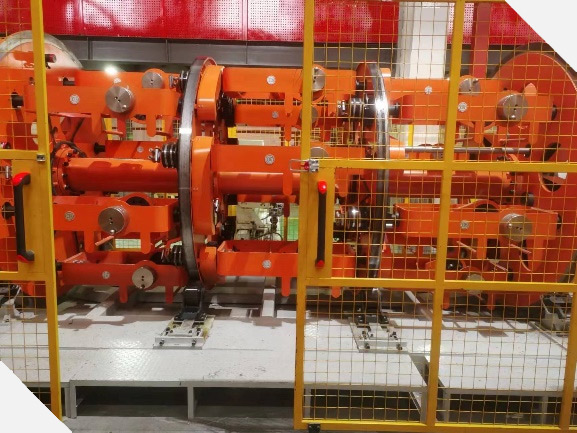

Cage of the cage strander + wire release frame

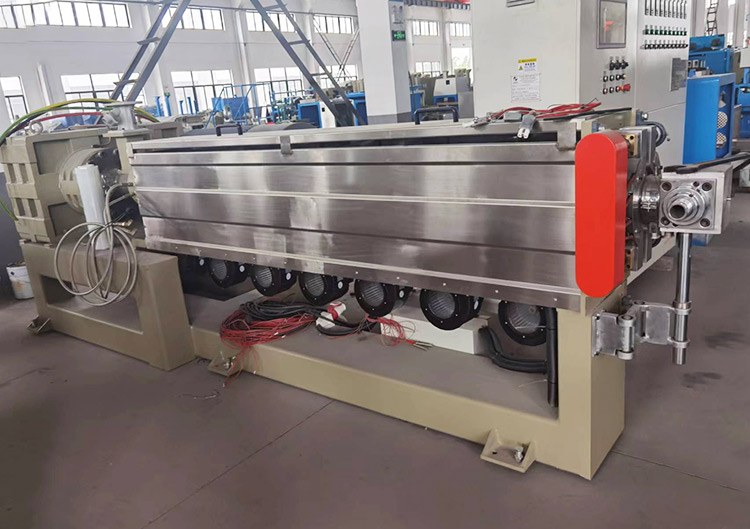

Outer Sheath Extrusion Process

Recommendation:

100mm/120mm extruder for outer sheath tubing

Applications:

Suitable for outer sheath extrusion of large cross-section cables such as new energy lines.

Vehicle Battery Connecting Copper Busbar - Extrusion Process

Recommendation:

Applications:

Suitable for extruding copper or aluminum busbars coated with PA12, XLPE, PVC and other insulating materials.
