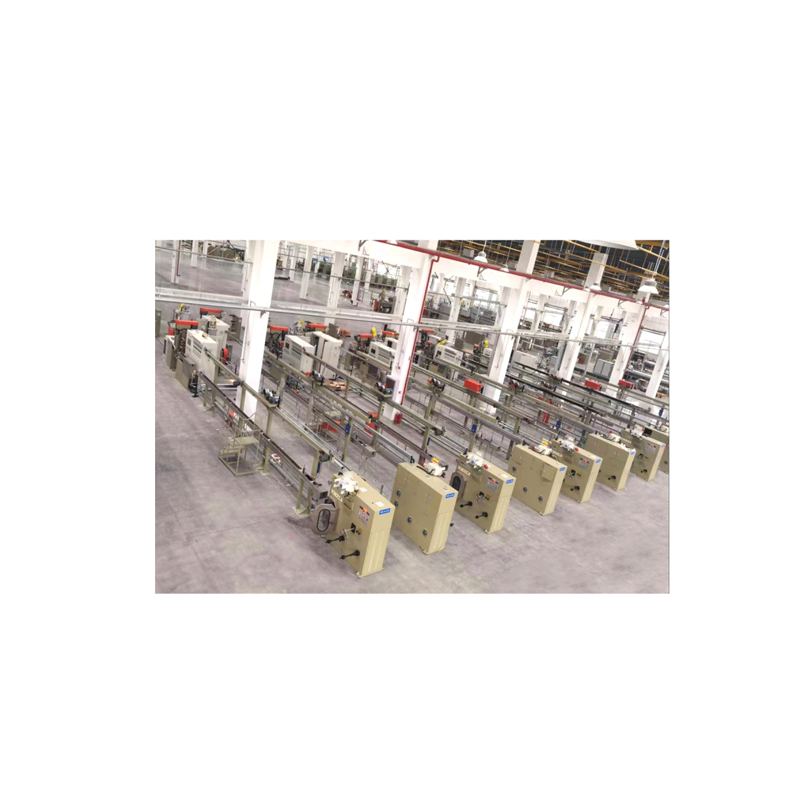

Core Wire Insulation Extrusion Line

■ Used widely: Used for conductor single layer/single layer+striping insulation extrusion.

High output: Optimizing screw design, Screw durability, non-cohesive gel, non-take off a chrome, color change quickly, high wire speed, high output.

■ High quality: Extrusion concentricity: over 93%; OD tolerance:+/-0.005mm.

Temperature control precision: Adopted SCR power control machine with imported high-quality temperature control table, the machine temperature is controlled within +/-1℃.

■ Easy control: Intelligent control wire diameter auto-teedhack and adjustment hommization machine desian comhined with NEWTOPP specialized touch screen make machine operation easier and more convenient.

■ Save space: Combine traditional accumulators, capstan, take-ups, meter counter, and so on, auxiliary devices into an integrated structure. The layout is compact. The overall length will reduce by over 5M.

NewTopp in 15th Shanghai International Wire and Cable Exhibition 2025 03-03
NewTopp is not listed as an exhibitor in search results for the 15th Shanghai International Wire and Cable Exhibition (wire China 2024) or the precedi...
What is the Core Process of a Teflon Wire Extruder? 2025 03-03
The core process for a Teflon wire extruder involves paste/powder extrusion, which consists of mixing the Teflon resin with a lubricant and preforming...
Troubleshooting and Solutions for the Wire Extruder Machine. 2025 03-03
Cable extrusion is a critical process in the manufacturing industry. It's the backbone of producing high-quality cables used in various applications. ...
What are the latest innovations in cable extrusion machines? 2025 03-03
Here are notable recent innovations in cable extrusion machine technology, reflecting current industry advancements:1. Energy & Resource Efficienc...
What is precision cable extrusion equipment? 2025 03-03
Precision cable extrusion equipment is engineered for ultra-accurate coating of conductors, where even minor defects compromise performance. Here's ho...

Model	XJ030	XJ040	XJ050	XJ060
Machine Usage	Used for conductor single layer/single layer+stripping insulation extrusion.
Wire specification	AWG36~AWG30	AWG32~AWG28	AWG30~AWG24	AWG28~AWG20
Extrusion material	HDPE, PP, PU, PVC, SR-PVC	HDPE, PP, PU, PVC, SR-PVC	HDPE, PP, PU, PVC, SR-PVC	HDPE, PP, PU, PVC, SR-PVC
Screw parameters	L/D ratio:26- -28:1. Compression ratio:2.7-3.2. Screw material:38CrMoAIA, vacuum heating treatment, Surface grinding, polishing chromium plating.
Temperature-control segments(body+ Head)	3+2	3+2	3+2	3+2
Main Power	7.5HP	10HP	15HP	20HP
Highest output	35KG/H	45KG/H	60KG/H	80KG/H
Highest wire speed	400M/MIN	500M/MIN	600M/MIN	800M/MIN
Movable water tank	Extension type movable trough, Mobile quantity 500, overall length 1 .8M with single segment type water dryer.
Length of U water tank	9M	9M	9M	9M
Accumulate wheel parameters (12+ 13 grooves)	Φ120	Φ120	Φ150	Φ200
Capstan power	3HP	3HP	3HP	5HP
Pay-offs type	Automatic shaft-type active pay-offs apply to Φ100~300 bobbin, Slider swinging rod hammer tension type structure, Online tension test display combined with a dividing rule(r) with break line protection.
Take-ups type	Double-shaft take-ups with traversing,3HP motor with frequency conversion speed regulation, can single/linkage running. auto stop when reaching the meter quantity, apply to Φ400- 500 bobbin.
